Features

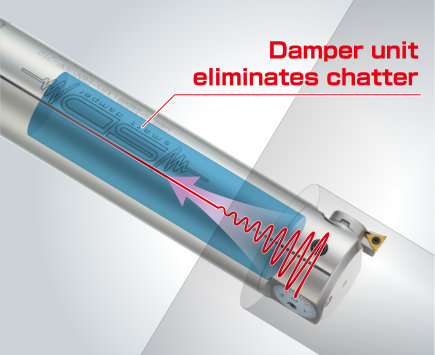

Damping mechanism

An incorporated unique damper that functions as both a counter damper and friction damper.
Patent-pending counter weight maximizes effect of the friction damper. Chatter is absorbed effectively and higher machining accuracy is achieved.

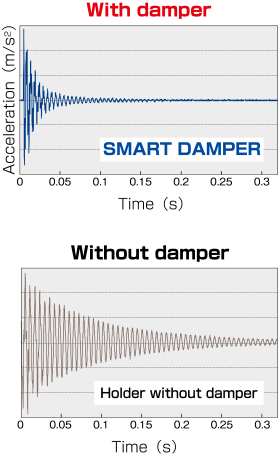

Comparison of oscillatory waveforms with and without dampers

Series

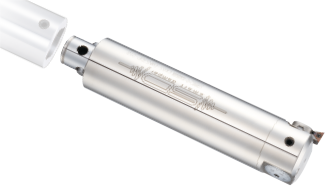

CK Boring Series

EWN BORING HEAD Type

Boring head with a built-in damper.
The EWN Boring Head functions are maintained, featuring integrated damper.

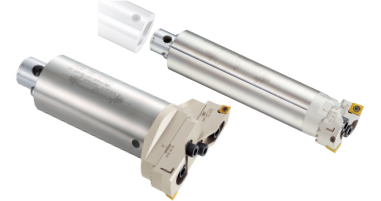

CK Boring Series

SW BORING HEAD Type

Boring head with a built-in damper.
Damper located closer to the cutting edge provides greater damping effect.

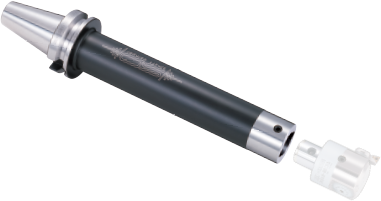

CK Boring Series

CK Shank Type

A damper is built into the CK Shank.
L/D = 6

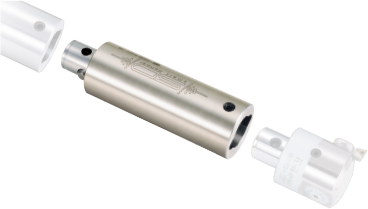

CK Boring Series

CK Extension Type

Just combine it with your standard CK Boring Head / CK Shank to achieve damping countermeasures.

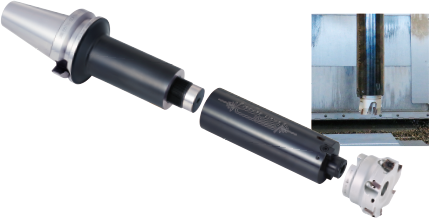

FACE MILL ARBOR TYPE FMH

High performance face milling
FMH22 / FMH25.4 / FMH27 / FMH32

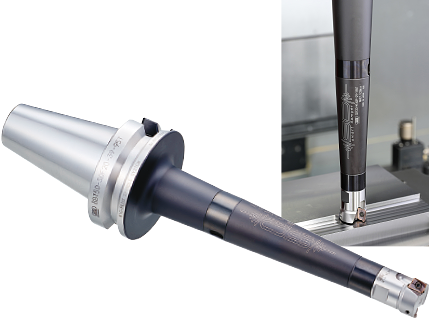

SCREW-ON HOLDER

Achieves stable damping effect even with Head Interchangeable Holder.

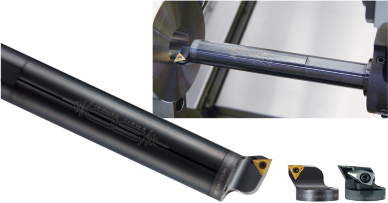

Turning Adapter for internal turning / BORING BAR

The heaviest damper in the series of Smart Dampers
instantly absorbs chatter in both rough and finish operations.

Application example

Finish Boring diameter: ø84

SMART DAMPER EWN BORING HEAD Type

With conventional tools, the work had to be turned over and machined from both sides, but using SMART DAMPER, it became possible to one pass machining.
In addition, even at the cutting speed of 300 m / min, the finish surface is beautiful without chatter, making it possible to high productivity.

Rough Boring

SMART DAMPER SW HEAD

6 times higher boring efficiency with two times the depth of cut and three times the cutting conditions.

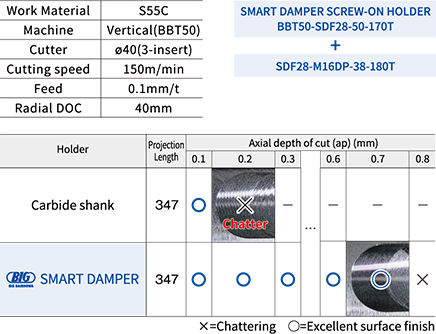

Grooving

SCREW-ON HOLDER

Internal finish turning (Bore dia: ø50)

SMART DAMPER BORING BAR
